Machine Tools

HS Series Punches

Double acting hydraulic system allows automatic and inching (manual mode) operation.

Punch & Dies for HA & HS Series

* 1" and 1-1/16" punch requires the use of a split lock nut (UHA9936-0) and reduces the maximum thickness to 9/16"


Model HS11-1624 HS07-1624 HS06-1322
Schematic Schematic Schematic

Max. Punching Diameter : 1-1/16"

Max. Punching Diameter : 15/16"

Max. Punching Diameter : 7/8"

  Max. Punching Thickness : 5/8"*
1/4" for 304 Stainless Steel
Max. Punching Thickness : 5/8"
1/4" for 304 Stainless Steel
Max. Punching Thickness : 1/2"
1/4" for 304 Stainless Steel
  Max. Output : 52 tons Max. Output : 52 tons Max. Output : 41 tons
Max. Throat Depth 4-5/16" 2-3/4" 2-3/8"
Hole Making Time Punching Time 11.8 sec. Punching Time 11.8 sec. Punching Time 7.9 sec.
  Returning Time 5.7 sec. Returning Time 5.7 sec. Returning Time 3.4 sec.
Allowable Max. Pressure 10,000 psi 10,000 psi 10,000 psi
Weight 66 lbs. 56 lbs. 45 lbs.

Accessories Included • Hose Kit Assembly • Hose Cord Assembly • Spanner • Spanner 12
• Sub Handle Assembly • Chip Guard Ass'y • Tool Box
• 22 mm Punch & Die mounted on machine • 4mm Allen Wrench • 5mm Allen Wrench

Punch & Dies for HA & HS Series

In case of mild steel maximum punching thickness must be decided based on the equation of 0.8 x punching diameter. For details see the instruction manual.

Optional Accessories

UHA9936-0 Split Lock Nut

for 1” and 1-1/16” Punch

TA99037-0 Lock Nut Assembly

for 25 mm Punch

Part #TBO2142-0

Hook Clamp Assembly

Part #TW-40

Spring Balancer for HS11/HS07

Part #TW-30

Spring Balancer for HS06

Part #TB02141-0

Foot Switch RelayAssembly

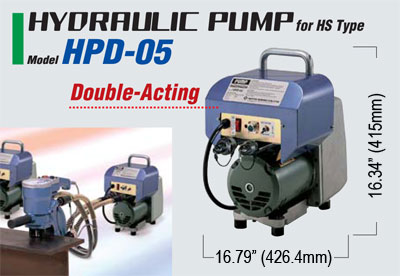

Portable Hydraulic Pump

HPD-05

Portable Double-Acting Hydraulic Pump
(to be used with the HS Series Punches)

Specifications

Model HPD-05
Power Source (Single Phase) 110-120V AC
Max. Output Pressure 10,000 psi
Output At No Load 1.53 qt/min
Output At 10,000 psi 0.7 qt/min
Motor 0.4 kw 4p
Reservoir Capacity 4.26 qt
Discharge Port Rc 3/8 (PT 3/8")
Weight 63 lbs.
