Screw Fastening Counter

DLR5040A-WU

Features

Improves screw fastening accuracy by monitoring counts and torqued status

  • Ideally suited for assembly lines of vehicles and high volume equipment requiring accurate screw fastening
  • The controller receives status signals from the electric screwdrivers to provide details on screw status
  • Count return Function: When loosening a screw, a reverse signal is sent to the controller to reduce the count by one
  • Count Correction Function: Ignores counts on screws that are outside the preset parameters or double fastened
  • Driver Lock Function: Prevents unexpected startup of screwdrivers
  • Input voltage range of 100 V AC - 240 V AC for hassle-free installation
  • Link Connection: You can build up a simple sequential screw tightening system by connecting the DLR5040A screw tightening counters in series without using any external controller such as a programmable controller
  • 30 % smaller and 38 % lighter than our conventional models
  • Designed for SPC transformer-less screwdrivers
  • Grounded bit system standard

Specifications
LINK Function
Count 1 - 99
Counting Method Count-up / Count-down
Count Correction Function Count normal fastening only
Self Adjustable Timer Setting 0.01 to 0.99 sec.
Work Detection Function Yes (1 terminal) / No
External Count Input 2 terminals (PARTS A / PARTS B)
Work Installation Timer Setting 0 to 9.5 sec.
OK Output Timer Setting 0 to 9.5 sec.
NG Alarm ON(1) / ON(2) / OFF
OK Buzzer ON(1) / ON(2) / ON(3) / OFF
Count Return Function ON / OFF
NG Judge Timing WORK SET / DRIVER ON
Automatic / Manual OK Judge AUTO / MANUAL
Screwdriver Lock Function ON / OFF
Multiple Link Up to 10 counters can be connected.
External Inputs on Terminal Block SENSOR / RESET / LINK-IN / PARTS A / PARTS B
External Outputs on Terminal Block OK / NG / LINK-OUT
Parameter Memory Parameters stored in internal nonvolatile memory
Input Voltage 100 - 240 V AC, 50/60 Hz See the bottom asterisk.*1
Size W × L × H in(mm) 3.98” × 5.12” × 2.36” (101 × 130 × 60)
Weight lbs(kg) 1.21 (0.55)

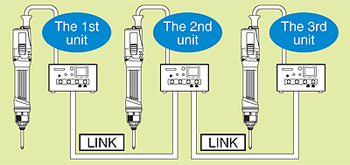

When counters are connected and activated in the screw fastening sequence as shown below, all screwdrivers are on standby except the first one in the sequence. Only when the first screw fastening is finished, can the next screwdriver change from standby to ready. When the last fastening in the sequence is finished, the first screwdriver is once again ready and the sequence can be repeated again.

Up to 10 screwdriver/counter sets can be connected to the LINK.

Acccessory
80”(2 m) cord with UL three-prong plug.

*1 : The voltage of the dedicated screwdrivers for DLR5040A-WU and DLR5340-WU is 115 V. When you need different voltage screwdrivers, please contact Nitto Kohki U.S.A.
