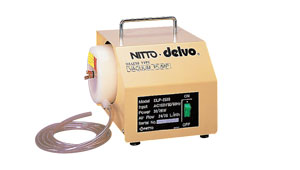

Vacuum Pump DLP2540 series

Features

Electric Screwdrivers can be used with Vacuum Pump and
Vacuum Pickup. The sleeve of Vacuum Pickup sucks the screw and holds it on the bit, enabling the operator to pick it up with the tool itself, thus improving operational efficiency and operator's productivity.

Specifications

Model Input Voltage No-load Current Power Consumption Achievable Vacuum Flow Rate at Outlet Weight Size
W × L × H
Standard Accessories
A W mmHg(kPa) L/min lbs(kg) in(mm)
DLP2540 115 V AC, 50/60 Hz 1/0.75 30/26 -160 (-21.3) 24/26 8.36 (Approx. 3.8) except Power Cord

6.1” × 7.3” × 5.5”

(152 × 182 × 138)

Power Cord Assembly : 1
