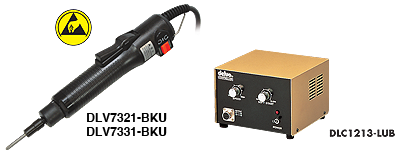

DLV7300-BKU series

For Miniature Screws #6 or less (1.0 - 3.5 mm)
Features

Work-piece friendly electric screwdrivers

  • Anti-Static, shielded design prevents electrostatic buildup and discharge
  • DLC1213 provides adjustable soft-start + speed control
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting
Method
Free Speed
rpm
Torque
Lb-in(Nm)
Screw Size(for reference) Weight lbs(g) Bit Input Voltage Power Consumption W
inch thread metric coarse thread
DLV7321-BKU Lever Start 700 - 1,000 0.4 - 4.4
(0.05 - 0.5)
#4 or less 1.0 - 3.0 mm 0.77 (350) Hex 1/4” 36 V DC 35
DLV7331-BKU 500 - 700 2.7 - 10.6
(0.3 - 1.2)
#2 - #6 2.0 - 3.5 mm
Controller

Model Input Voltage Function Weight lbs(g)
DLC1213-LUB 115 V AC, 50/60 Hz Grounding, Soft Start, Speed Control 5.06 (2.3)
Standard Accessories

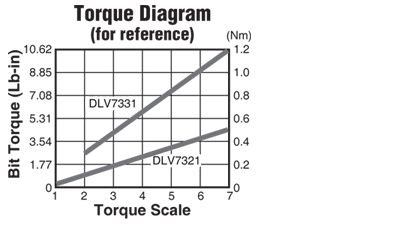

Torque Diagrams (for reference)
For DLV7321-BKU and
DLV7331-BKU
  • Bit No.1 × 7 × 50: 1 pc.
  • Bit No.2 × 7 × 50: 1 pc.
  • Suspension Bail: 1 pc.
