Transformerless Brushless Motor for Screw Fastenning Counter

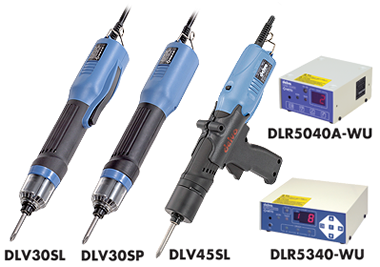

DLV30/45-SPC series

Features

Brushless motor powered electric screwdrivers with screw fastening counter

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • Any of the three models can be operated by a standard controller, allowing a wide range of torque from 3.5 - 39.8 Lb-in and max speeds of 650, 1,200, and 2,000 rpm
  • Torque ring cover prevents unintentional changes in the preset torque amount (clear cover on DLV30 series)
  • Torque ring cover prevents unintentional changes in the preset torque amount (DLV45)
  • Detachable Pistol Grip comes as standard accessory (DLV45)
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting
Method
Free Speed
rpm
Torque Adjustment
Lb-in(Nm)
Screw Size(for reference) Weight lbs(g) Bit Input Voltage Power Consumption W
Low Torque Spring
(Standard Accessory)
High Torque Spring
(installed)
inch thread metric coarse thread
DLV30LL-SPC(LKU) Lever Start 650 3.5 - 14.2
(0.4 - 1.6)
10.6 - 26.6
(1.2 - 3.0)
#3 - #11 2.6 - 5.0 mm 1.58 (700) Hex 1/4” 115 V AC, 50/60 Hz 45
DLV30SL-SPC(LKU) 1,200
DLV30HL-SPC(LKU) 2,000
DLV30LP-SPC(LKU) Push to Start 650
DLV30SP-SPC(LKU) 1,200
DLV30HP-SPC(LKU) 2,000
DLV45LL-SPC(LKU) Lever Start 650 17.7 - 39.8
(2.0 - 4.5)
#9 - #13 4.5 - 6.0 mm 1.91 (870)
with Pistol Grip
DLV45SL-SPC(LKU) 1,200
DLV45LP-SPC(LKU) Push to Start 650
DLV45SP-SPC(LKU) 1,200
Controller
DLR5040A-WU Screw Fastening Counter
DLR5340-WU Screw Fastening Counter
Standard Accessories
Optional Accessories
For DLV30
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.
  • Low Torque Spring: 1 pc.
For DLV45
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.

Easy-to-attach grip for horizontal operation.
Pistol Grip DLW2300
(TD00335)
Torque Reaction Arm
(TD06180)

Vacuum Pickup DLP7400 for high torque
(TD07286-0)
Sleeve
DLS4220
(TV06220-0)
DLS4221(TV06221-0)

For enhanced productivity and prevention of operator’s repetitive motion injury, a torque reaction arm should be used all together.
Torque Diagrams (for reference)
